Perceptron Each of the m weights affects only one output so there are m training processes

$\mathbf{x}$ is the input vector $y$ is the true class label for the input $g_\mathbf{w}(x)$ is the perceptron prediction for the input $\alpha$ is a learning rate constant that determines how large the updates are

Depending on the activation function the training process will be either

1. Step function Perceptron learning rule $$w_i \leftarrow w_i + a(y-g_\mathbf{w}(\mathbf{x})){x}_i$$
2. Gradient descent rule for sigmoid perceptron $$w_i \leftarrow w_i + \alpha (y-g_\mathbf{w}(\mathbf{x})) \times g_\mathbf{w}(\mathbf{x}) \times (1- g_\mathbf{w}(\mathbf{x})) \times {x}_i$$

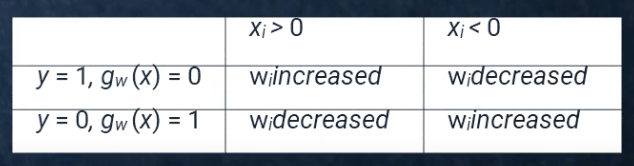

But fundamentally the same. Weights are updated to push the predicted class towards the actual class.

Example

For initial weights $\mathbf{w} = [0,0,0]$ where $\mathbf{w}0$ is the bias input vector $\mathbf{x} = [1, 2]$ actual class label $y = 1$ predicted label $g\mathbf{w}(x) = 0$ learning rate $\alpha = 1$

add bias to front of input x = [1,1,2]

w_0 = 0 + 1 x (1-0) x 1 = 1 w_1 = 0 + 1 x (1-0) x 1 = 1 w_2 = 0 + 1 x (1-0) x 2 = 2

updated weight vector [1,1,2]

Test

𝑤=(1.0,0.5,0.1)𝑇, learning rate 𝛼=0.5, and activation function 𝑔 given by 𝑔(𝑥)=1 if (∑𝑖=1𝑖=3𝑤𝑖×𝑥𝑖)>0, and 𝑔(𝑥)=0 otherwise

i can’t see a bias weight - no bias

prediction $$ p = g(\mathbf{w}j \cdot \mathbf{a}) = g\left(\sum{i=0}^n w_{i, j} a_i\right) $$

learning $$w_i \leftarrow w_i + a(y-g_\mathbf{w}(\mathbf{x})){x}_i$$

first line prediction w*x = 2 x 1.0 + 4 x 0.5 + 3 x 0.1 = 2 + 2 + 0.3 = 4.3 g(4.3) = 1 if sum of weights x inputs is positive which it is so 1

w_1 <- 1.0 + 0.5(1 - 1)2 = 1.0

second line wx = 5 x 1.0 + 9 x 0.5 + 7 x 0.1 = 5 + 4.5 + 0.7 g(x) = 1, prediction = 0 so there is a difference therefore weights all need to be updated

1.0, 5 w_1 <- 1.0 + 0.5(0-1)5 = 1 - 2.5 = -1.5

0.5, 9 0.5 + 0.5(-1)9 = 0.5 - 4.5 = -4

0.1, 7 0.1 + 0.5(-1)7 = 0.1 - 3.5 = -3.4

NEW WEIGHT VECTOR [-1.5, -4, -3.4]

-1.5, 5 -1.5 + 0.5(1 - 0)5 = -1.5 + 2.5 = 1

-4, 4 -4 + 0.5(1)4 = -4 + 2 = -2

-3.4, 3 -3.4 + 0.5(1)3 = -3.4 + 1.5 = -1.9

1, -2, -1.9-
